– 10 –

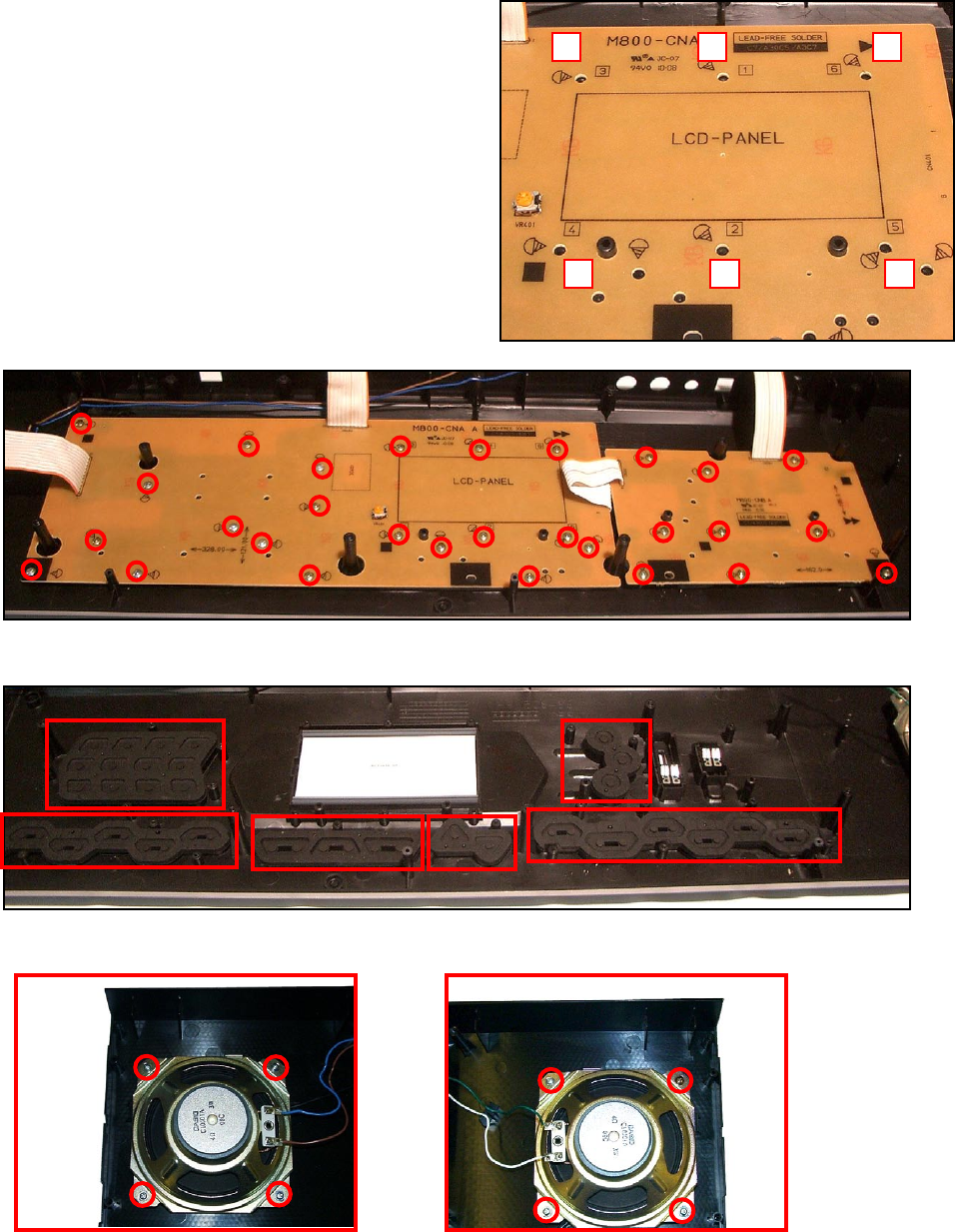

8. To remove the console PCBs (M800-CNA, M800-CNB).

8-1.

Remove the volume and Power knob.

8-2. Remove 29 screws and then the PCBs (M800-CNA and M800-CNB).

Caution while assembling:

6 screws fixating the LCD unit must be

screwed on in adesignated order.When

assembling, be sure to tighten the screws in

theorder from 1 - 6 shown in the photo.Failing

to do so may cause display malfunctions.

4 2 5

3 1 6

9. Remove the rubber keys.

10. Remove 8 screws and then two speakers.
